|Materials:||Aluminum Alloy||Size:||90mm,100mm, 130mm,150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm,1000mm|
|Surface Treatment:||Powder Coated, PVDF Paint, Anodized||Coating:||Akzo Nobel, PPG|
|Pattern:||Horizontal, Vertical||Type:||Fixed System|
|Color:||Any RAL Colors, Wood Grain Color, Stone Color||Accessoires:||Endcaps, Support Frame|
|Application:||Facade, Window, Curtain Wall, Fence, Sunshade||Email:||firstname.lastname@example.org|

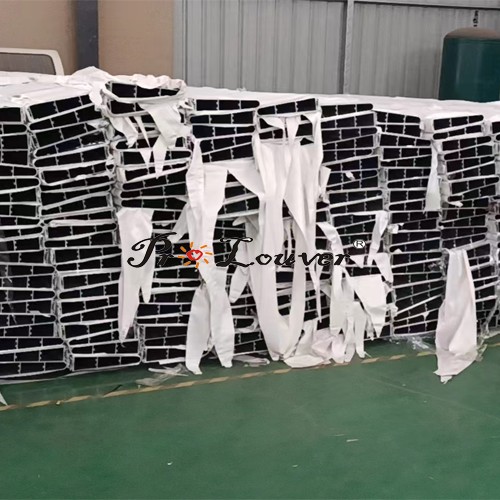

Prolouver Aerofoil Aerofoil Aluminum Architectural Sun Louver size showing as below, made of aluminum profile | aluminum extrusion section 6063-T5. PROLOUVER Aerofoil Aluminum exterior sun louver are based on aluminum extrusions, mainly in elliptic shape, has various size of sun louvers blades, width size including,50mm,60mm,75mm,90mm,100mm,150mm,200mm,250mm,300mm,350mm,400mm,450mm,600mm,max. length is 6M long. The length depends on wind load and clients requirement.

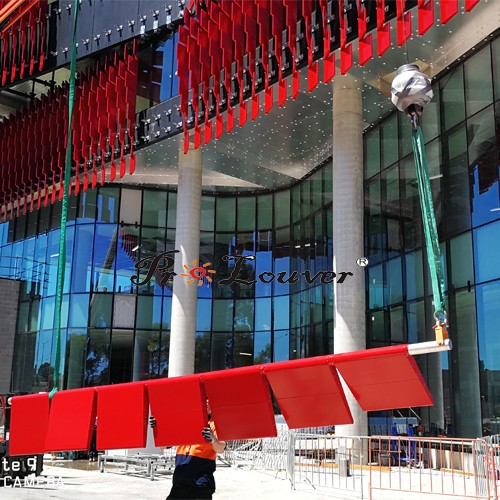

PROLOUVER Aerofoil Aluminium architectural façade sun louvers:
- Materials:Aluminum alloy 6063-T5/6060-T6
- Type: Fixing and adjustable installation
- Installing: horizontal or vertical or angled
- Feature: Energy-saving, heat insulation
- Surface treatment: Powder coating (Akzo Nobel) / PPG PVDF finish/Anodized 15um-25um ,which guanratee for 10-25years.
