Aerofoil sun louver

Description

Type:

Shutters, aluminium aerofoil aluminum louvers commercial shutter

Warranty:

More than 5 years

After-sale Service:

Online technical support, Onsite Training, Onsite Inspection, Inspection

Project Solution Capability:

graphic design, total solution for projects, Cross Categories Consolidation

Application:

Louver, facade, window, curtain wall, roof

Design Style:

Modern

Place of Origin:

Guangdong, China

Brand Name:

PROLOUVER

Model Number:

Prolouver Aerofoil sun louver

Material:

Aluminum alloy

Opening Pattern:

Horizontal, horizontal

Surface treatment:

Powder coating, PVDF, Anodized

Coating:

Akzo Nobel, PPG

Shape:

Ellipse (olive)

Website:

www.prolouver.com

Color:

RAL color or woodgrain color

Ventilation facade blade width:

100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm,600mm

Keywords:

Aerofoil sun louver

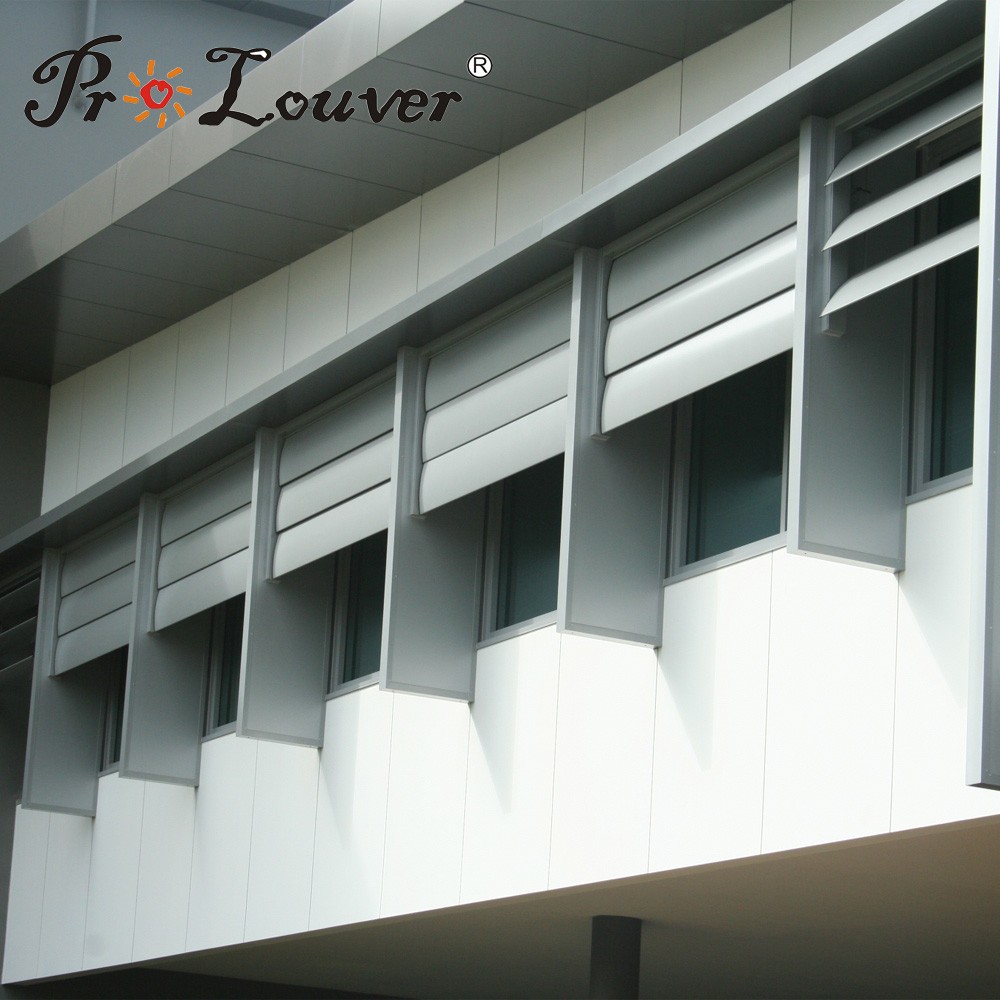

PROLOUVER Manufacture Aerofoil Aluminum Architectural Sun Louver used for exterior façade curtain wall Cladding.

Prolouver  Aerofoil Aerofoil Aluminum Architectural Sun Louver  size showing as below, made of aluminum profile | aluminum extrusion section 6063-T5. PROLOUVER Aerofoil Aluminum exterior sun louver are based on aluminum extrusions, mainly in elliptic shape, has various size of sun louvers blades, width size including,50mm,60mm,75mm,90mm,100mm,150mm,200mm,250mm,300mm,350mm,400mm,450mm,600mm,max. length is 6M long. The length depends on wind load and clients requirement.

PROLOUVER Aerofoil Aluminium architectural façade sun louvers:

• Materials:Aluminum alloy 6063-T5/6060-T6
• Type: Fixing and adjustable installation
• Installing: horizontal or vertical or angled
• Feature: Energy-saving, heat insulation
• Surface treatment: Powder coating (Akzo Nobel) / PPG PVDF finish/Anodized 15um-25um ,which guanratee for 10-25years.
